產品介紹

我公司提供各種型號的廂式和板框式機械壓濾機、液壓壓濾機、隔膜壓濾機、快開式壓濾機、全自動壓濾機以及壓濾機配件，質量可靠，規格齊全。

1、         濾板規格有：320型、450型、630型、800型、870型、1000型、1250型、1500型、2000型等。

2、         過濾面積最大到2000㎡。

3、         濾板材質分鑄鐵、不銹鋼、增強聚丙烯，玻纖聚丙烯等。

4、         液流形式有明流、暗流、可洗、不可洗、中進料、角進料等多種形式。

5、         濾板壓緊方式有：手動螺旋壓緊、電動機械壓緊和液壓油缸壓緊。對于特殊要求的壓濾機可另行商定解決。

Our company supplies various types of recessed plate and plate-frame mechanical filter press, hydraulic filter press, membrane filter press, quick open filter press, full-automatic filter press and filter press spare parts.

1、         Filter plate specification include: 320mm, 450mm, 630mm, 800mm, 870mm, 1000mm, 1250mm, 1500mm and 2000mm etc.

2、         Filtration area up to 2000㎡

3、         Filter plate materials: cast iron, stainless steel, reinforced polypropylene, glass fiber polypropylene etc.

4、         Flow forms: open flow, close flow, washable, non-washable, middle feeding and corner feeding etc.

5、         Filter plate pressing modes: manual screw pressing, electric mechanic pressing and hydraulic cylinder pressing, Special filter press can be made on request.

加型號說明圖

結構與工作原理   structure and operating principle

1、         壓濾機由機架、濾板、壓緊系統（手動、機械、液壓三種形式）和電氣控制柜組成。

2、         機架部分起支撐壓緊裝置和濾板的作用，由機座、壓緊板、止推板和主梁組成。

3、         濾板安裝在壓緊板和止推板之間的主梁上，中間裝有濾布。

4、         工作時，由壓緊裝置（油缸活塞桿或絲桿）推動壓緊板，將位于壓緊板和止推板之間的濾板和濾布壓緊，被壓緊的濾板與濾板之間就形成了濾室，由料泵壓入的物料從止推板進料孔進入各個濾室，固體顆粒被截留在濾室內，并形成濾餅，液體則透過濾餅和濾布由出液孔排出機體外。若需要對濾餅進行洗滌，可用尾板上的洗液口通入洗滌水對濾餅進行洗滌。若需將濾餅吹干，可由洗液口通入壓縮空氣，將濾餅吹干。

5、         板框式壓濾機架的結構與廂式壓濾機相同，只是過濾部分是一板一框和濾布組成，板框空間是濾室。

6、         壓濾機的液流形式分為明流、暗流。明流是指濾液從每塊濾板的出液孔直接排出機外；暗流是指各塊濾板的濾液匯合起來由出液孔道排出機外。

1、         Filter press consists of frame, filter plate, pressing system (manual, mechanical or hydraulic) and electric control cabinet.

2、         Frame consists of base, pushing plate, tail plate and beam and frame supports the pressing device and filter plates.

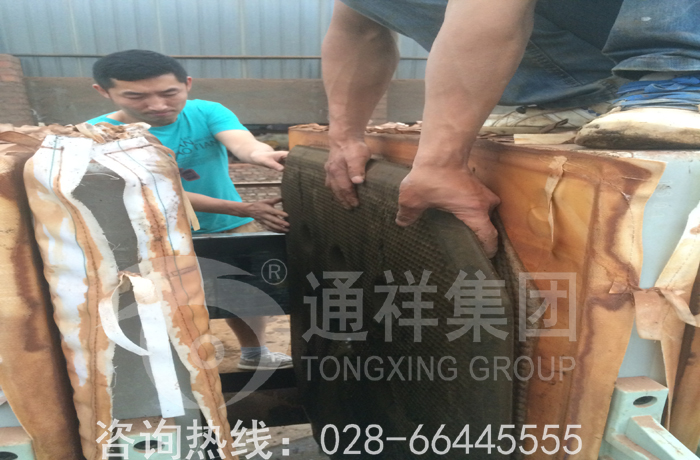

3、         Filter plates are installed on the beam between tail plate and push plate, with filter cloth sandwiched in them.

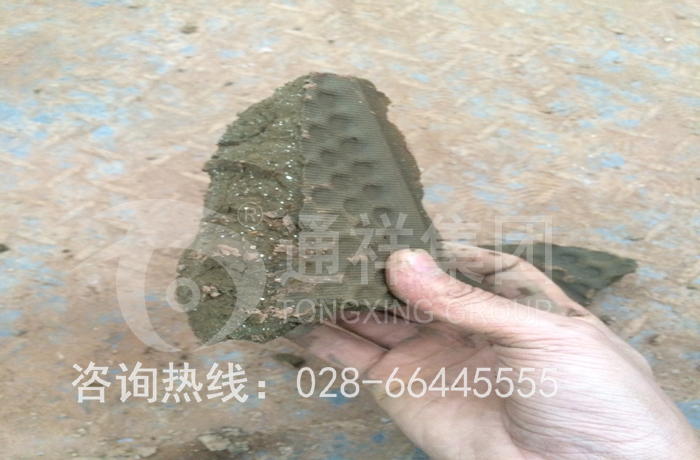

4、         In operation, the pressing device (cylinder piston rod or screw) drives the push plate to press the filter plate and filter cloth between push plate and tail plate. Filter chamber are formed between pressed filter plates and materials get into the filter chambers through the feeding inlet of tail plate. Solid particles are remained in filter chambers forming into cakes, while liquid is discharged out of the machine through press cake and filter cloth. To wash the press cakes, washing water can be introduced through the washing inlet of the tail plate. In similar manner, drying the filter cakes with compressed air going into the washing inlect.

5、         Structure of plate-frame type and chamber type filter press is the same. Except the filtering part that consists of one plate, one frame and filter cloth, with filter chamber between plate and frame.

6、         Liquid stream of filter press can be divided into open stream and close stream. Open flow refers to that the filtrate is discharge directly from the outlet of filter plate; Close flow refers to that the filtrate is collected from various filter plate before being discharged out of the filtrate port.

壓濾機訂貨需知   how to order filter press

1、         首先請參考壓濾機簡介和各種型號參數，根據需要選擇機型、板框材質、壓緊方式和過濾形式。

2、         根據產品需要選擇：明流、暗流、可洗與不可洗請在合同中注明。

3、         整機中不含物料液泵，如需配套供應可在合同中注明。
